SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

Spindle diameter 110mm

excellent heavy-duty cutting performance

suitable for large workpieces

Место происхождения:

КИТАЙ

Фирменное наименование:

SMTCL

Сертификация:

CE ISO certification

Номер модели:

PBC110m

Свяжитесь с нами
Запросите цитату
Подробная информация о продукции
Фирменное наименование:
SMTCL
Номер модели:
PBC110m
ЧПУ или нет:
Сжигание
Ключевое слово:
Горизонтальная CNC фрезерная буровая машина
Скорость шпинделя:
10-2000 оборотов/мин
Размер верстака:
1000×1250 мм
Максимальная нагрузка рабочего стола:
5 Т
Поперечное движение X рабочего стола:
2000 мм
Вертикальное движение Y головки:
1500 мм
Продольное движениеZ колонны:
1200 mm
Проезд W шпинделя:
550 мм
Условия оплаты и доставки
Количество мин заказа
1
Упаковывая детали
Деревянный корпус, оловянный багажник, другие мореходные упаковки
Время доставки
45-60 дней
Условия оплаты
T/T, L/C, Western Union
Поставка способности
50 комплектов в месяц
Описание продукта

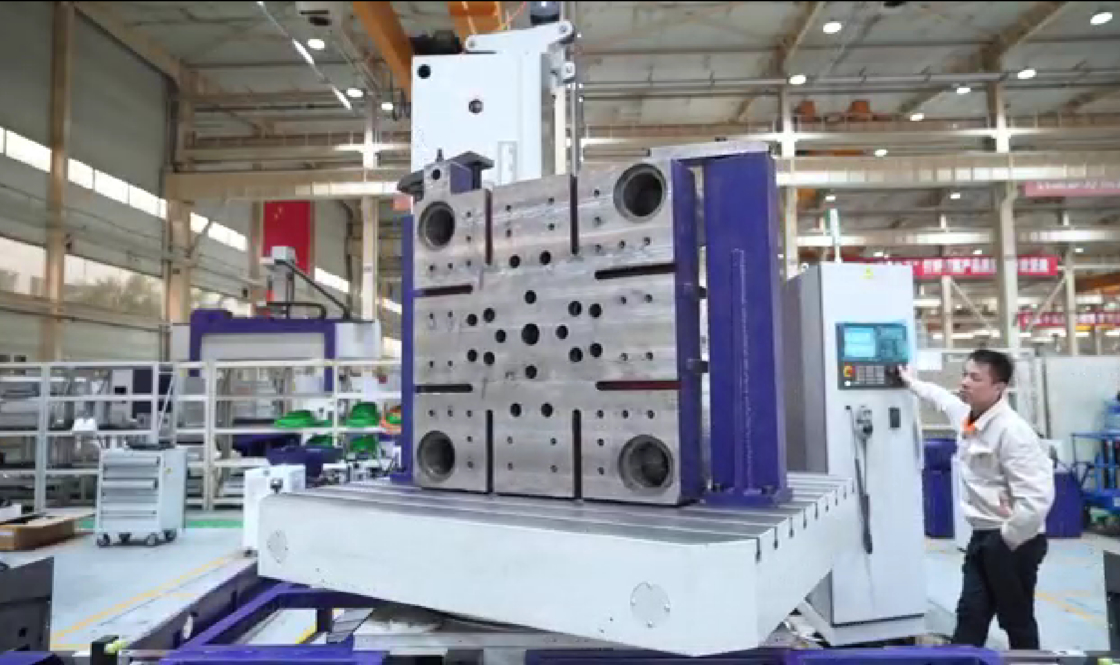

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 0

Product Description:

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine
It is a general-purpose CNC horizontal milling and boring machine, and it is widely used in general machinery, engineering machinery, transportation and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance
Spindle group:The spindle is driven by precision gear group meshing, with smooth operation and high accuracy
Guide rail:Y-axis and Z-axis adopt the two-linear & one-hard guide rail, taking into account both speed and rigidity
Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox, the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1. Spindle diameter 110mm, torque 2800Nm, excellent heavy-duty cutting performance

2. Worktable load capacity 5 tons, X-axis travel 2 meters, suitable for large workpieces

3. Full closed-loop control, positioning accuracy 0.018mm, precise machining

4. Automatic tool change system, tool change time 7 seconds, significantly improved efficiency

5. Integral aged bed, high precision stability during continuous operation

Product Details:

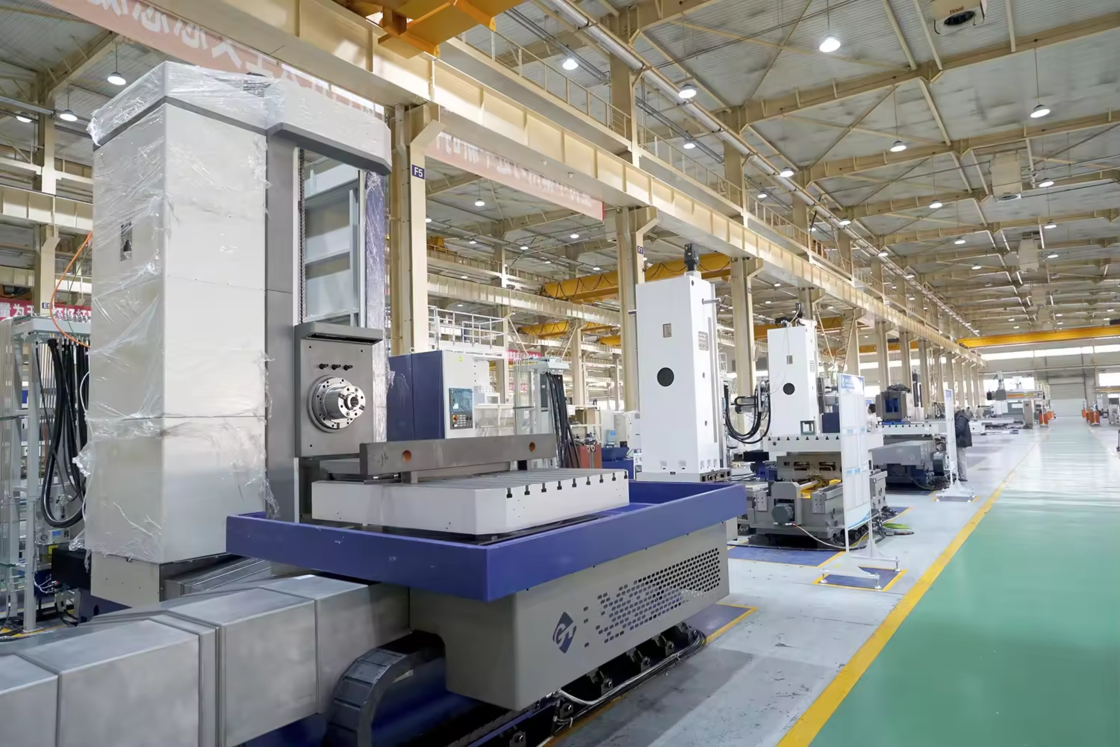

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 1

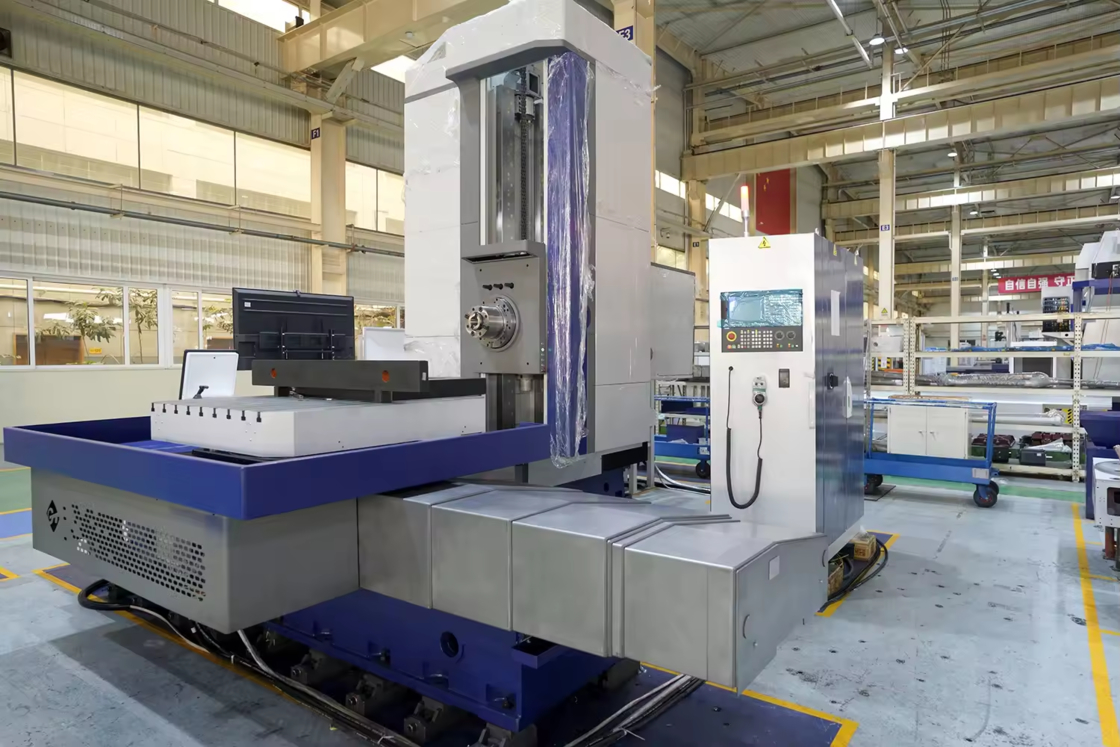

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 2

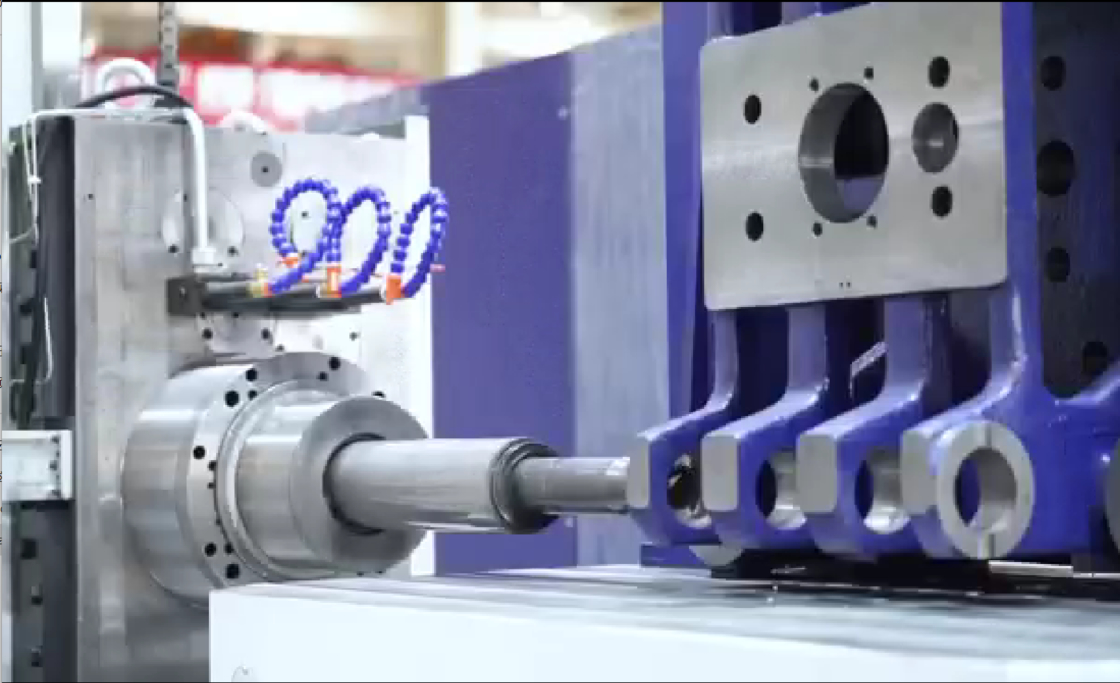

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 3

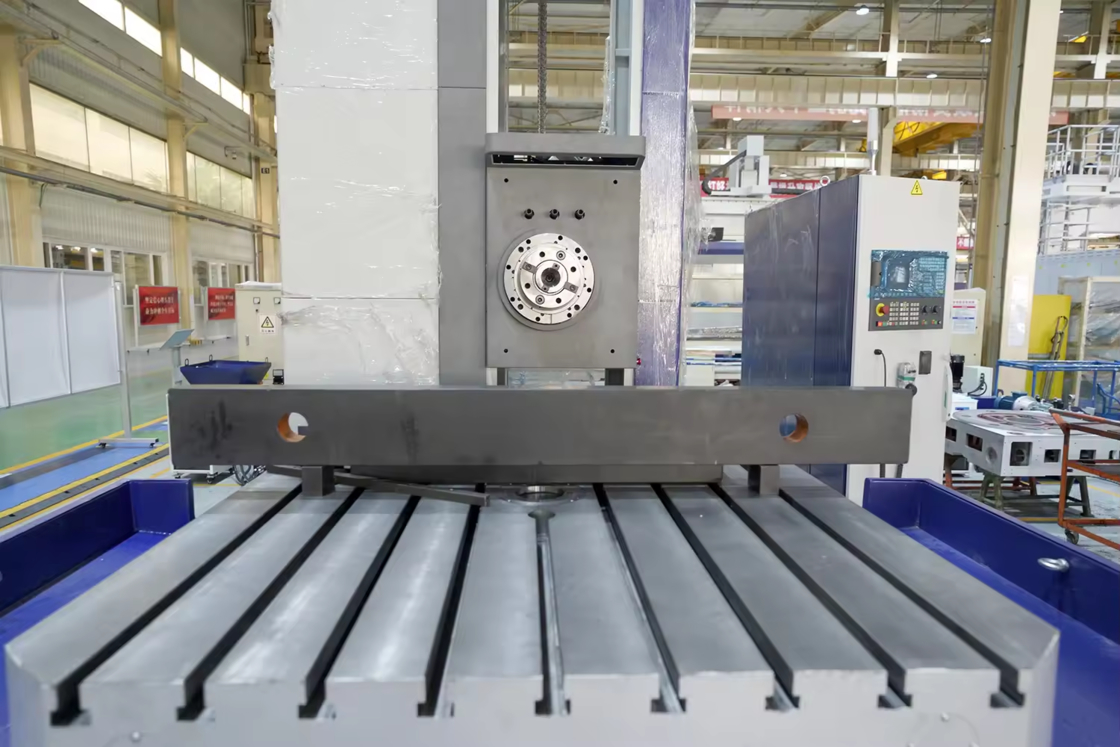

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 4
Product Paramenters:
ltems
Unit
PBC 110m
PBC 110fm
Workbench dimension
mm
1000×1250/ 1250×1400
Maximum load of workbench
T
5
Spindle diameter
mm
φ110
Spindle taper hole

IS0 7:24 N0.50
Tool shank specification

JT50/BT50
Spindle speed
r/min
10-2500
10-2000
Facing head rotary speed
r/min

10-200
Power of main motor
kW
17/20.4
19.5/23.4
Maximum torque of spindle
Nm
1300/1600
X-axis stroke
mm
2000
Y-axis stroke
mm
1500
Z-axis stroke
mm
1200
Spindle stroke W
mm
550
Facing head sliding block stroke U
mm
-
140
Workbench rotation B
°
0.01×360°
Feeding speed
X,Y,Z
mm/min
1-6000
W
mm/min
1-2000
U
mm/min
-
1-1000
B
r/min
0-1
Rapid speed
X,Y,Z
m/min
10
W
m/min
2.4
U
m/min
-
2.4
B
r/min
2
Positioning accuracy
X,Y,Z
mm
0.018/0.015(grating scale)
0.018/0.015(grating scale)
W
mm
0.016
U
mm
-
0.032
B
''
12/8(gratingscale),
4×90°;6
12/8(gratingscale),
4×90°;6
Repositioning accuracy
X,Y,Z
mm
0.01
W

0.014
U
mm
-
0.018
B
''
6
CNC system

SIEMENS 828D
SIEMENS 828D
Standard configuration:
SIEMENS 828D
Cooling and chip removal
Centralized lubrication
Headstock oil cooler
Imported spindle bearings
Spindle blowing function
Workbench water tray
Y-direction armor protection
Guide rail protection
Operator protection
Air gun/water gun
Anchor cushion iron
Floodlight
Cabinet air conditioner
Optional configuration:
24/40/60 tool magazine
Accessory milling head
Workbench area protection
X/Y/-axis grating ruler
Spindle internal cooling
Pump station oil cooler
Adaptive control
Tool load abnormality detection
Energy saving package
SIMENS one
FANUC 0I/31I system

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:

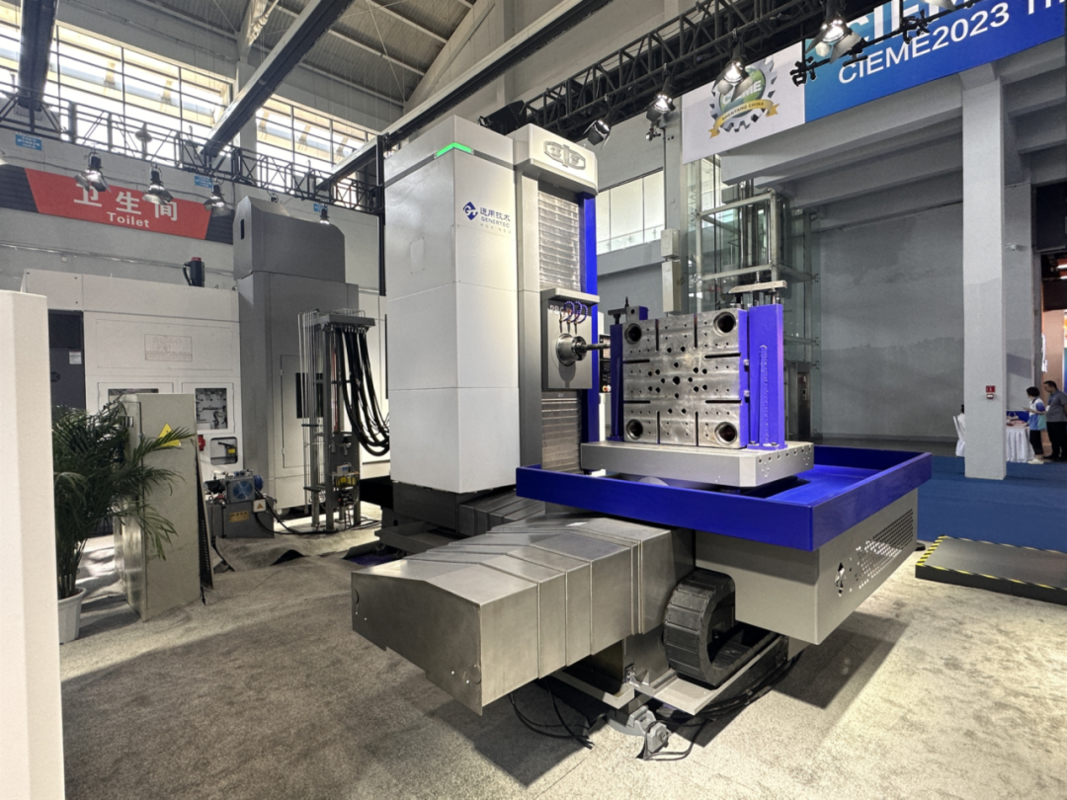

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 5
