SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center

GSK Controller

10000 rpm

Economical Vertical CNC Machining Center

Место происхождения:

Китай

Фирменное наименование:

SMTCL/SYMG

Сертификация:

ISO certification

Номер модели:

IV85

Свяжитесь с нами
Запросите цитату
Подробная информация о продукции
Тип::
Вертикальный
Система управления CNC::
FANUC, Siemens, GSK
Размер стола (L×W):
1150x500 мм
Y Ось путешествие:
500 мм
X Ось путешествие:
1000 мм
Z ось путешествия:
540 мм
Скорость питания (mm/min)::
1 - 10000 мм/мин
Сила мотора шпинделя (kW)::
11
Емкость журнала инструмента::
24
Название бренда::
SYMG, SMTCL
Условия оплаты и доставки
Количество мин заказа
1 комплект
Цена
Подлежит обсуждению
Упаковывая детали
Деревянный корпус, оловянный багажник, другие мореходные упаковки
Время доставки
45-60 дней
Условия оплаты
Л/К, Т/Т, западное соединение
Поставка способности
50 комплектов в месяц
Описание продукта

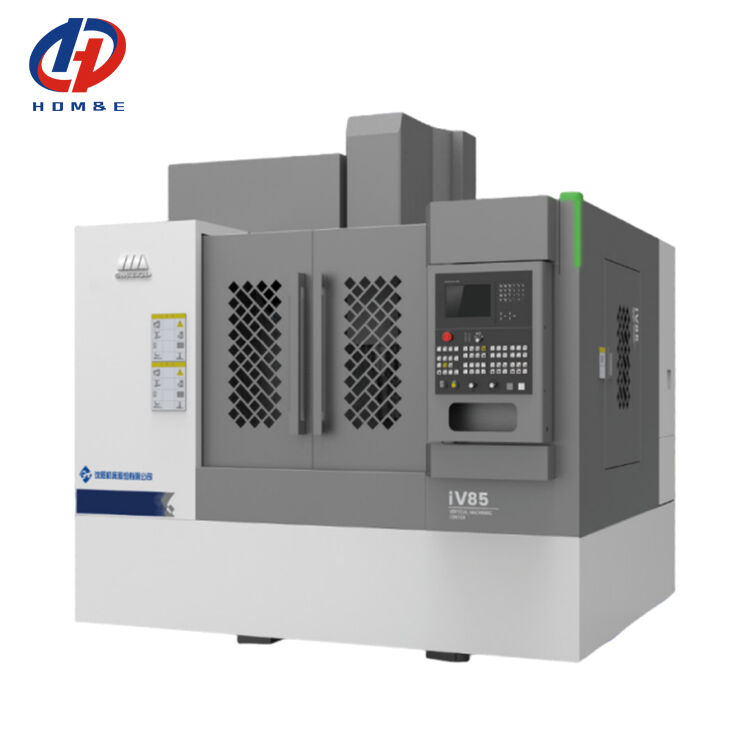

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 0

Product Description:



SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center
The iV85 product is mainly used for processing parts in industries such as automobiles, motorcycles, and agricultural machinery. It can meet the requirements of efficient and large-scale processing. The entire machine adopts a vertical frame layout. The human-shaped columns are fixed on the bed, and the main spindle box moves up and down along the columns (in the Z direction), the slide seat moves longitudinally along the bed (in the Y direction), and the worktable moves laterally along the slide seat (in the X direction). The machine has a large load-bearing capacity, high rigidity, low dynamic and static friction, high sensitivity, small high-speed vibration, low-speed no crawling, high positioning accuracy, and excellent servo drive performance. The modular design, high-performance customized configuration, can continuously complete milling, drilling, reaming, tapping, boring, tapping and other operations, as well as two-dimensional and three-dimensional curved surface and inclined surface precise processing, achieving better economic benefits.

PRODUCT SPECIFICATIONS:

Item
Unit
IV85
Worktable
Table size (L×W)
mm
1000×500
Max load on the table

kg
600
T-slot size
mm
18×5
Capacity
X axis travel
mm
850
Y axis travel
mm
500
Z axis travel
mm
540
Spindle nose to table surface
mm
120-660
Spindle
Spindle taper

BT40
Spindle speed
rpm
10000
Spindle motor
kw
11
Maximum output torque
N.m
52.5
Spindle drive type

Synchronous tooth belt
Feed
X/Y/Z rapid traverse
m/min
48/48/48
Feed rate
mm/min
1-20000
A.T.C
Tool storage capacity
pc
Arm type 24
Max tool weight
kg
7
Max tool length
mm
300
Max tool diameter(Full Cutting)
mm
80
Max tool diameter(Air Cutting)
mm
125
Tool change time(T-T)
sec
2.5
Positioning Accuracy
X
mm
0.008
Y/Z
mm
0.006
Repeatability Accuracy
X
mm
0.005
Y/Z
mm
0.004
Others
Net machine weight
kg
4900
CNC System

F01-22MA-10-STD-DG
Why Choose Us :

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:
SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 1
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 2

Exhibition:

SMTCL Economical Vertical CNC Machining Center IV85 GSK Controller Vertical Machining Center 3

FAQ:


Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.



Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.



Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.



Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.


Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system


Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.


Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.


Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
