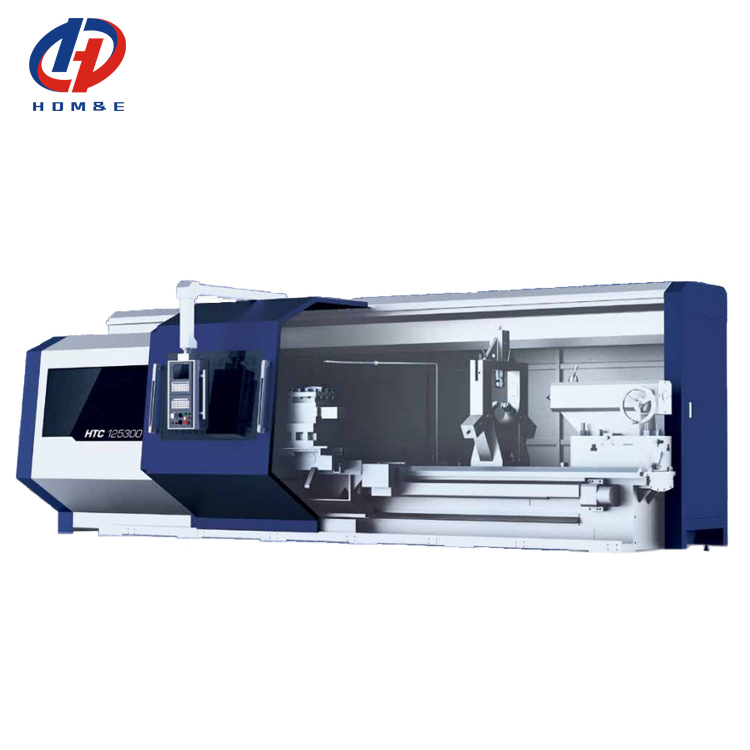

Name: SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: HTC125300
Availability: InStock

Дом > продукты > Токарный станок CNC плоской кровати >

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe

Max swing diameter 1250mm

Metallurgy valve industry processing CNC Lathe

SMTCL Heavy Turning Lathe

Место происхождения:

Китай

Фирменное наименование:

SMTCL

Сертификация:

CE ISO

Номер модели:

HTC125300

Документ:

1-GT SMTCL HTC125 Large fla...he.pdf

Свяжитесь с нами

Запросите цитату

Подробная информация о продукции

Бренд:

SMTCL

Тип:

HTC125500

Название продукта:

Горизонтальная плоская станковая машина

Максимальный диаметр качеля над кроватью:

1250 мм

Максимальная длина резки:

5000 мм

Максимальный диаметр резки:

1250 мм

X Ось путешествие:

650 мм

Z ось путешествия:

5000 мм

Тип поста инструмента:

Вертикальное 4-положение

Условия оплаты и доставки

Количество мин заказа

1 комплект

Упаковывая детали

Стандарт деревянного пакета для морской доставки

Время доставки

30 дней

Поставка способности

50 комплектов в месяц

Родственные продукты

Видео

SMTCL Автоматический поворотный станком Металл CAK100 серии Чак Диаметр 1000 мм Тяжелая нагрузка Плоская кровать CNC поворотный станк

Лучшая цена

Видео

SMTCL Тяжелый CNC-токарный станок 5000 мм HTC125500 Горизонтальный плоский кровать CNC Тяжелый токарный станок

Лучшая цена

Видео

Степной механизм CNC CAK6385 Сервомотор 4 станции Башня Металлический Степной механизм

Лучшая цена

Видео

Степной механизм CNC CAK63285 Плоская кровать Степной механизм CNC 4 станции башня с сервомотором

Лучшая цена

Свяжитесь с нами

+8613916455787

sales@huidijd.com

86-021-61195255

Свяжитесь сейчас

Описание продукта

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe 0

Product Description:

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe

HTC125500 has many excellent selling points:

First of all, it has strong processing capabilities. HTC125300 can be widely used in general machinery, construction machinery, molds and other industries. It can perform high-precision and high-efficiency cutting processing and has strong cutting ability, easily coping with the processing needs of various complex workpieces.

Secondly, it can be equipped with a fixed facing head, which greatly expands the processing range. Whether it is a large workpiece or a workpiece with a special shape, a suitable processing solution can be found.

Moreover, it adopts advanced design and manufacturing technology. The double oil cylinder balance design ensures the stability and reliability of the machine tool during operation, reduces vibration and improves processing accuracy.

In addition, Shenyang Machine Tool HTC125300 is easy to operate and easy to use. The intelligent control system enables operators to quickly and accurately adjust parameters and improve production efficiency. At the same time, as a well-known brand, Shenyang Machine Tool has a perfect after-sales service system to provide users with timely and professional technical support and maintenance guarantees, leaving users without worries.

Product Features:

headstock:

Selection of imported precision spindle bearings, high precision fire grinding gear, spindle hydraulic shift Chuck: Selection of domestic well-known brands, clamping force, clamping reliable

Z-axis drive:

SIEMENS/FANUC original servo motor, screw drive for machine tools with less than 5m stroke, rack drive for machine tools with 6m and above

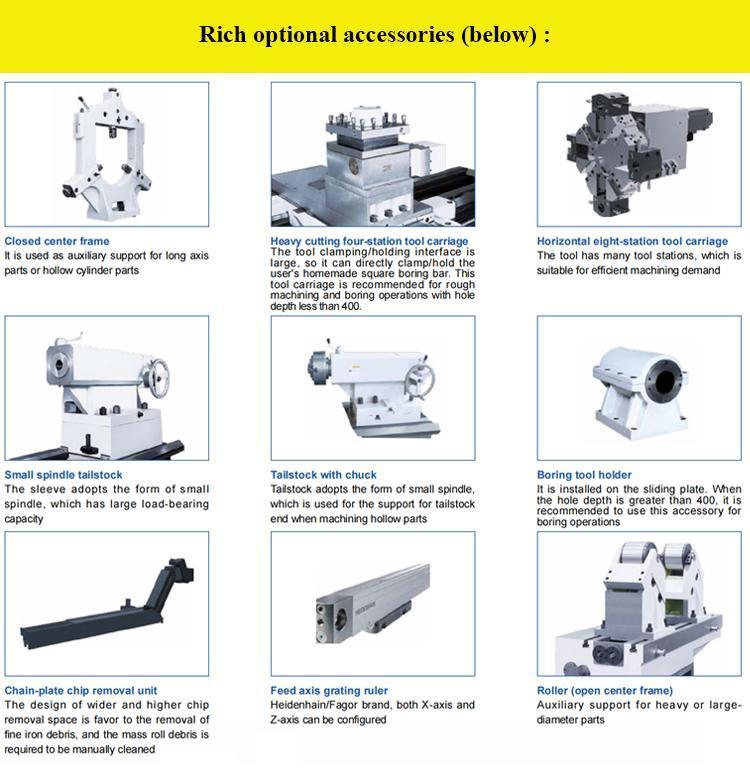

Steady rest:

Various specifications closed center frame (can be equipped with rollers)

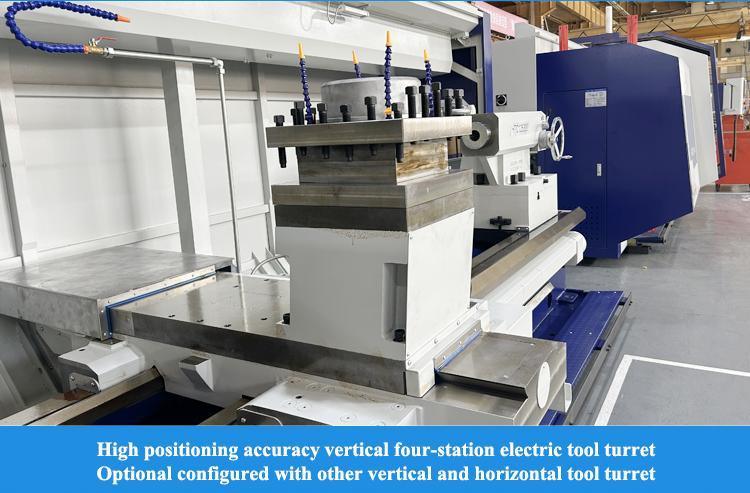

Tool rest:

Domestic vertical four-station electric tool holder, can be selected with other vertical and horizontal tool holder, high positioning accuracy, strong rigidity, high reliability

Bed saddle, skateboard:

Casting bed saddle, skateboard, reasonable internal rib layout, high precision ball screw or rack and pinion, high precision, accurate transmission

Control console:

Siemens servo system, to achieve high-speed, high-precision, high-stability servo control, optional FANUC system

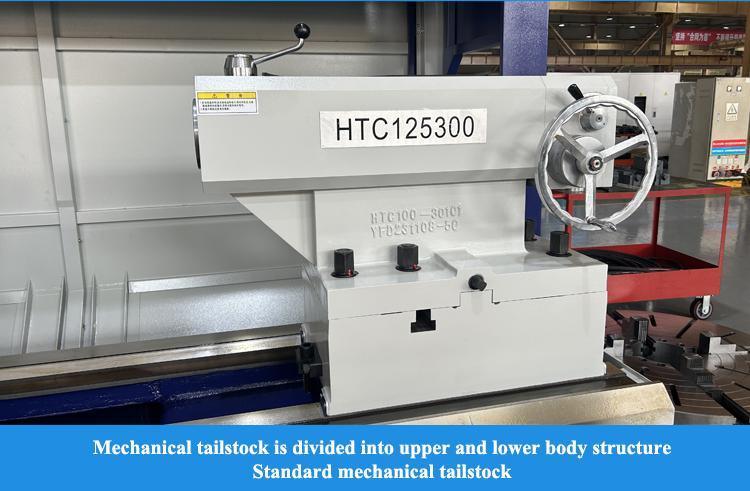

Tailstock:

Mechanical tail seat is divided into upper and lower body structure. Standard mechanical tailstock

Body:

Casting bed with reasonable internal rib layout and auxiliary guide rail, with high rigidity, strong bearing capacity, good stability and so on. (6m and above specifications of the bed with a long section splicing form)

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe 9

Industry application:

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe 10

Product Paramenters:

Items	Unit	HTC 125500
Maximum swing diameter over bed	mm	1250
Maximum workpiece holding length (distance between centers)	mm	5100
Maximum cutting length	mm	5000
Maximum cutting diameter	mm	1250
Maximum swing diameter over cross slide	mm	850
Spindle nose type and code		A2-15
Spindle front end bore taper		Metric 140
Spindle bore diameter	mm	130
Hydraulic variable speed headstock
Spindle speed range	r/min	5-500
Maximum output torque of spindle	Nm	7500
Spindle speed steps		Hydraulicly 3steps, infinitely variable speeds at each step
Power of main motor	kW	22
Chuck
Diameter/type of chuck	mm	1000/manual four-claw
X-axis rapid traverse speed	m/min	6
Z-axis rapid traverse speed	m/min	5
X-axis travel	mm	650
Z-axis travel	mm	3000
Mechanical tailstock
Tailstock sleeve diameter	mm	160
Tailstock sleeve travel	mm	300
Tailstock sleeve taper		Mohs 6#
Tool post type		Vertical 4-position
Tool size	mm	40*40
Maximum load capacity
Disc workpieces	kg	1000
Shaft workpieces	kg	5000
Machining accuracy		IT6-IT7
Roundness of workpiece machined	mm	0.005
Consistency of machining diameter	mm	0.025/300
Planeness of workpiece machined	mm	0.02/300
Surface roughness of workpiece machined
Cylindrical surface		Ra l.6μm
Circular cambered surface Conical surface		Ra 3.2μm
Positioning accuracy
X-axis	mm	0.014
Z-axis	mm	0.05
Repeated positioning accuracy
X-axis	mm	0.006
Z-axis	mm	0.016
Center height
From bed	mm	625
From ground surface	mm	1275
Overall dimension (L* W * H)	mm	850027252450
Standard configuration: 1. CNC control system: Siemens 828D 2.Domestic 22kW frequency conversion main motor 3. Imported high-precision spindle bearings 4. Manual tail seat 5. Vertical four-station electric tool holder 6. Imported brand lead screw 7. φ1000 manual four-jaw chuck 8. Two axis automatic lubrication 9. Cooling device 10.The floor mat iron (technical foot hole configuration)	Selective configuration: 1. CNC system FANUC(two-axis motor with the system configuration) 2. Other specifications three or four jaw chuck 3. Heidenhain/Fager grating ruler 4. Axle parts bearing capacity 8 tons 5. Various specifications steady rest and roller 6. Siemens/FANUC main motor 7. Other specifications power tool holder 8. Semi-closed protection 9. Chain plate chip extractor 10. Various specifications boring tool base 11. Small spindle tailstock 12. Electric tailstock

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
